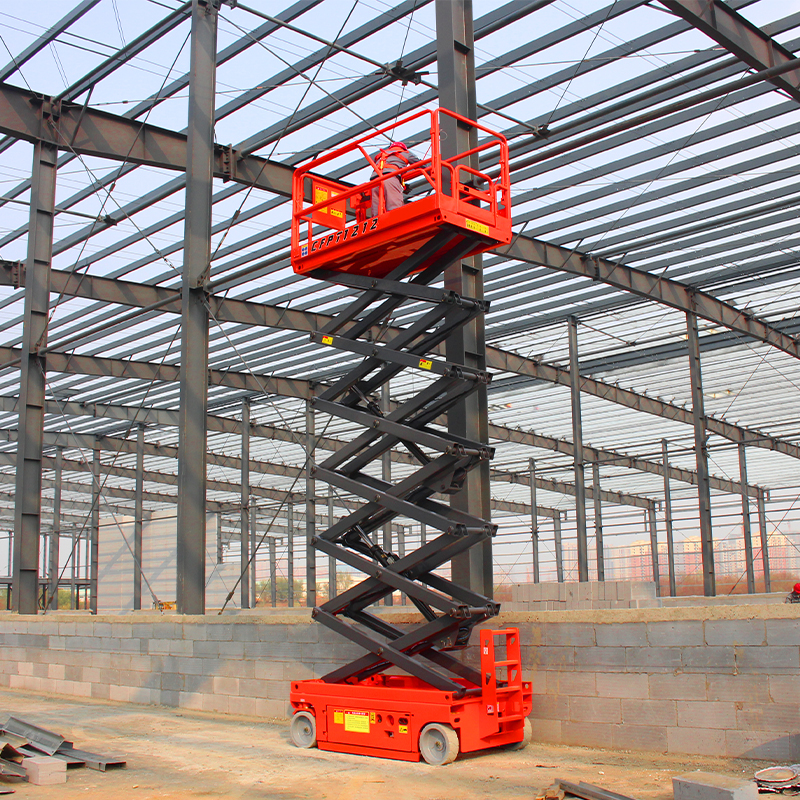

This is currently the max. Height of slab scissor lift. As the ideal model for flexible operation in narrow space hydraulic electric scissor lifts feature nice appearances compact structures stability reliability strong power performance ...

Main Features

    •Front wheel steering
    •High/low travel speed
    •Extension deck
    •Foldable guardrails

Working height Max. 16 m
Platform height Max. 14 m
Platform size Size 2.64*1.12 m
Equipment Size 2.85*1.25*2.105 m
Extended platform Length 0.9 m
Wheel base 2.23 m
Radius of turning circle Min.(inner wheel) 0 m
Radius of turning circle Min.(outer wheel) 2.7 m
Lift capacity 200 kg
Extended platform load capacity 113 kg
Traveling speed(fold) 3.5 km/h
Traveling speed(lifting) 0.8 km/h
Rising/declining speed 88/60 sec
Grade ability 0.25
Working angle Max. 2°/3°
Tire Φ381x0.127m
Weight 3450 kg

Lifting electric motor 24V / 4.5kw
Battery 4x12/300Ah
Charger 24V / 25A
Voltage 110-240 V


Proportional controls
Automatic pothole protection
Self-lock gate on platform
Non-marking tyre, 2WD
Automatic brakes system
Emergency stop button
Emergency lower system
Cylinder holding valve
Onboard diagnostic system
Tilt sensor with alarm
All motion alarm
Hour meter
Safety brackets
Forklift pockets
Folding guardrails
Extendable platform
Charger protection
Flashing beacon

Overload sensor with alarm
AC power on the platform
Platform work lights
Airline to the platform
Platform anti-collision switch
