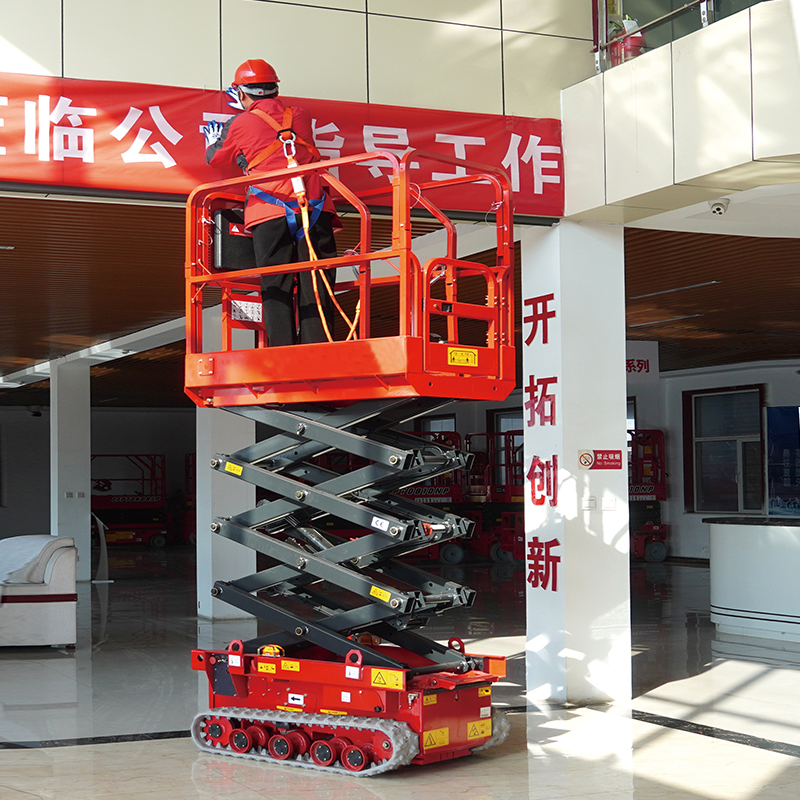

GTJZ0406LD
Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions such as muddy snowy sandy road....
GTJZ0406LD
Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions such as muddy snowy sandy road....
Main Features
-
• Rough terrain capability
• Extendible decks.
• Working height: 8•12m or customizable.
• 48V DC battery power source
| Working height Max. | 6.5 m |
| Platform height Max. | 4.5 m |
| Platform size | 1.27*0.715 m |
| Dimension | 1.27*0.78*1.5 m |
| Extended platform Length | 0.55 m |
| Radius of turning circle Min. | 0 m |
| Lift capacity | 200 kg |
| Extended platform load capacity | 100 kg |
| Traveling speed | 2 km/h |
| Rising/declining speed | 34/28 sec |
| Grade ability | 0.25 |
| Working angle Max. | 1.5°/2° |
| Weight | 790 kg |
| Lifting electric motor | 24V / 0.8kw |
| Battery | 2*12V/130Ah |
| Charger | 24V / 20A |
