GTJZ0608LD

GTJZ0608LD

Without being limited by the road conditions which is widely used under rough terrain conditions like wild jungle prairie field mud... the electric•drive CFMG Crawler self propelled scissor lifts are construction•oriented....

Main Features

    • Zero inside turning radius.
    •  Safety Devices :lifting warning device overturning prevention system (movement control system elevation control system) overload prevention system activation off switch lever guard charger cable protection  device etc

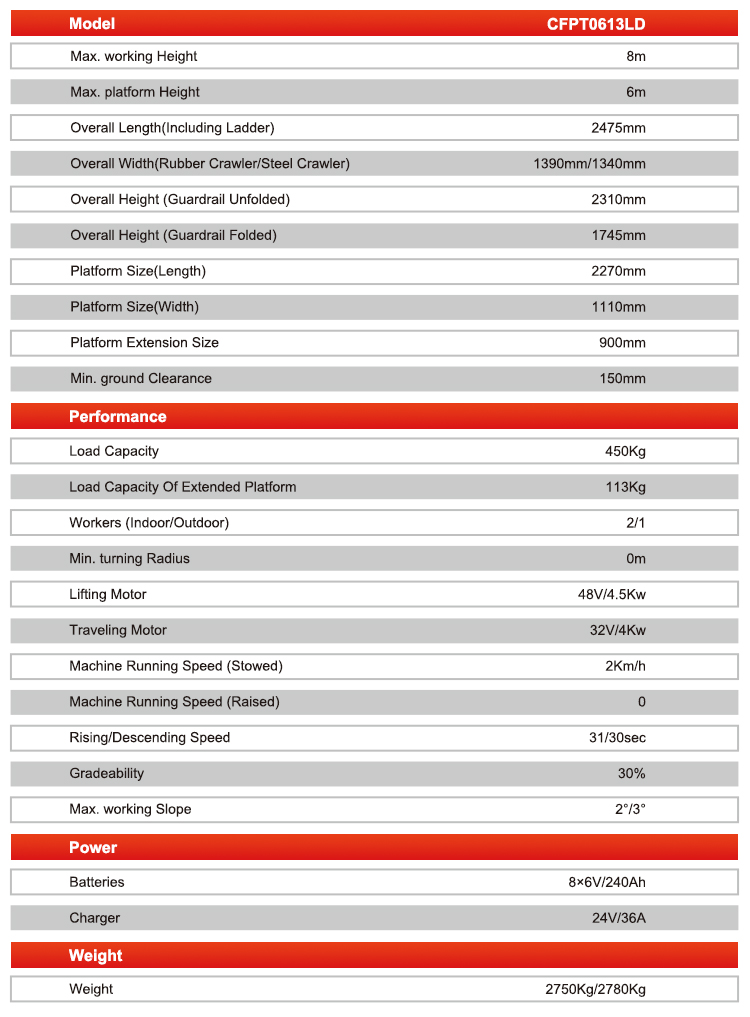

Working height Max. 8 m
Platform height Max. 6 m
Platform size 2.27*1.12 m
Equipment Length 2.47*1.45*1.765 m
Extended platform Length 0.9 m
Radius of turning circle Min. 0 m
Lift capacity 450 kg
Extended platform load capacity 113 kg
Traveling speed 2 km/h
Rising/declining speed 24/34 sec
Grade ability 0.3
Working angle Max. 2°/3°
Weight 2760 kg



Lifting electric motor 48V / 2.2kw
Battery 8x6V/225Ah
Charger 48V / 25A



Features:

Proportional controls
Automatic pothole protection
Self-lock gate on platform
Automatic brakes system
Emergency stop button
Emergency lower system
Cylinder holding valve
Onboard diagnostic system
Tilt sensor with alarm
All motion alarm
Horn
Hour meter
Safety brackets
Forklift pockets
Folding guardrails
Extendable platform
Charger protection
Flashing beacon

Options:

Overload sensor with alarm
AC power on the platform
Platform work lights
Airline to the platform
Platform anti-collision switch
