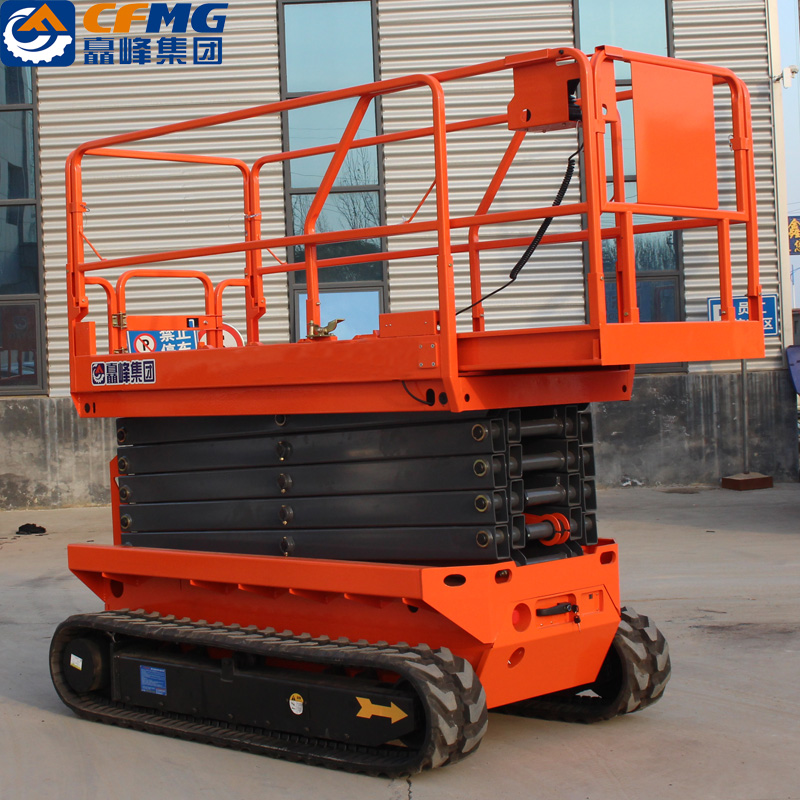

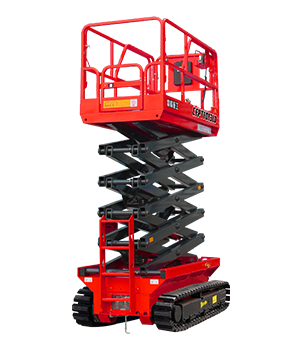

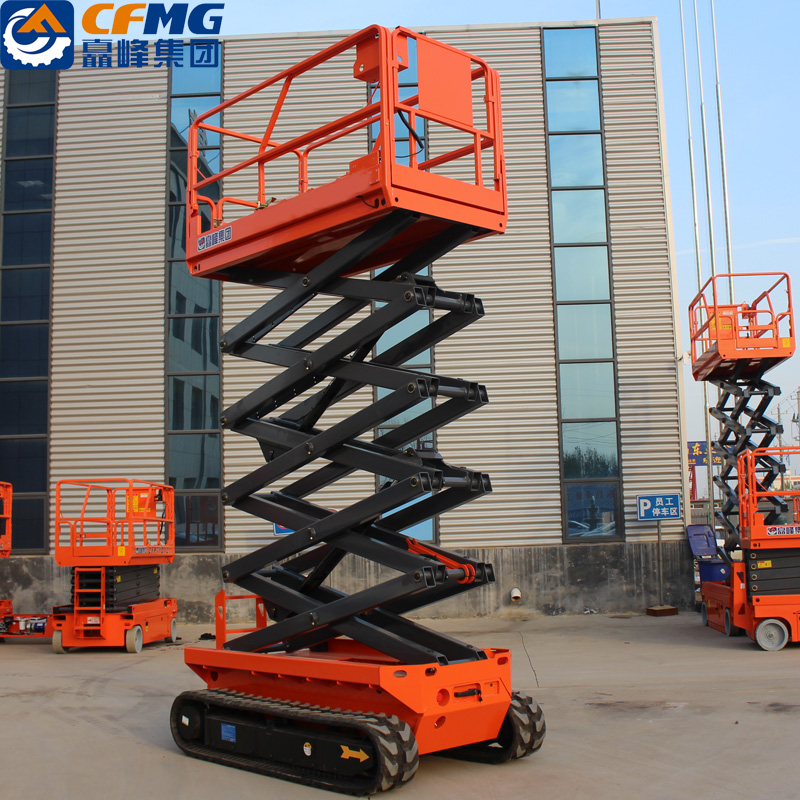

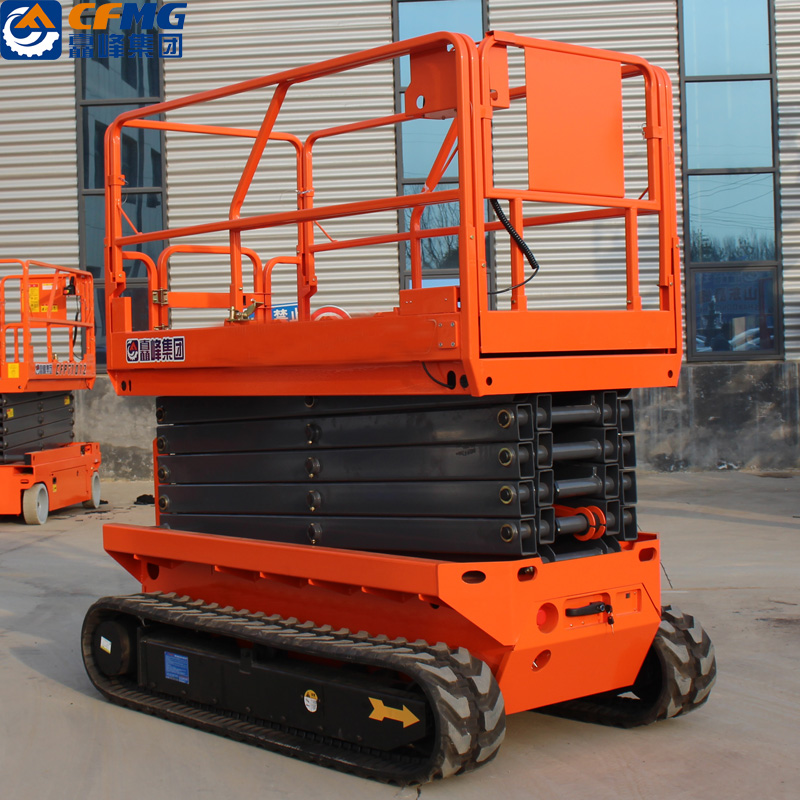

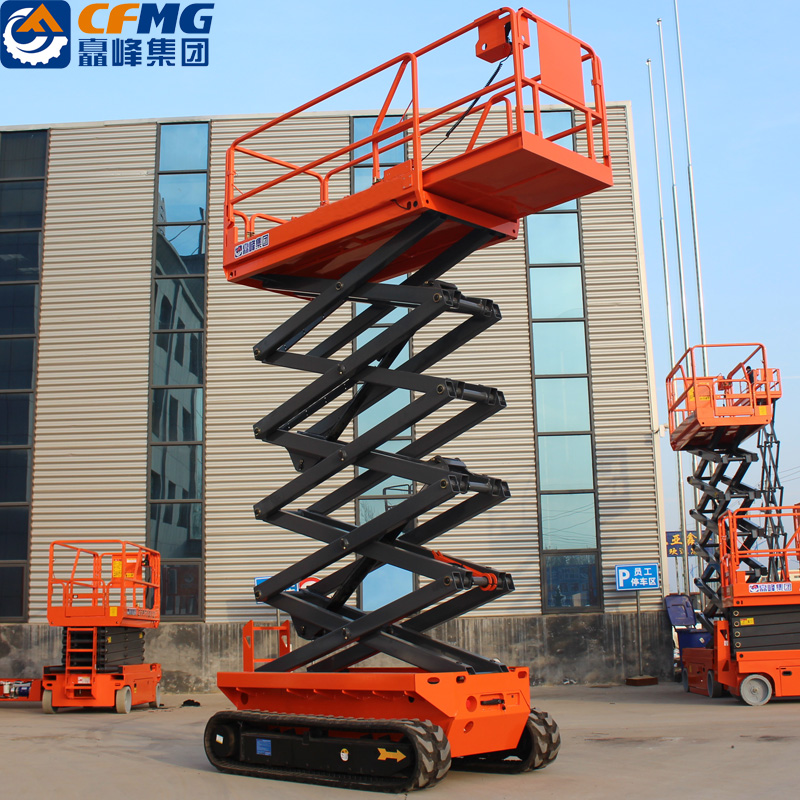

GTJZ1012LD
With max. 12m work height CFMG electric driven track lift platform contains several compact models which allow you to operate the machine in limit space. It uses 48V Trojan batteries for Uninterrupted power supply. ...
GTJZ1012LD
With max. 12m work height CFMG electric driven track lift platform contains several compact models which allow you to operate the machine in limit space. It uses 48V Trojan batteries for Uninterrupted power supply. ...
Main Features
-
•Zero inside turning radius
•Derivable and functional at full height
•Outriggers (optional)
•Proportional controls for drive functions
| Working height Max. | 12 m |
| Platform height Max. | 10 m |
| Platform size L | 2.27*1.12 m |
| Equipment Length | 2.47*1.45*2.105 m |
| Extended platform Length | 0.9 m |
| Radius of turning circle Min. | 0 m |
| Lift capacity | 320 kg |
| Extended platform load capacity | 113 kg |
| Traveling speed | 2 km/h |
| Rising/declining speed | 38/46 sec |
| Grade ability | 0.3 |
| Working angle Max. | 2°/3° |
| Weight | 3030 kg |
| Lifting electric motor | 48V / 2.2kw |
| Battery | 8x6V/225Ah |
| Charger | 48V / 25A |
Features:
Proportional controls
Automatic pothole protection
Self-lock gate on platform
Automatic brakes system
Emergency stop button
Emergency lower system
Cylinder holding valve
Onboard diagnostic system
Tilt sensor with alarm
All motion alarm
Horn
Hour meter
Safety brackets
Forklift pockets
Folding guardrails
Extendable platform
Charger protection
Flashing beacon
Options:
Overload sensor with alarm
AC power on the platform
Platform work lights
Airline to the platform
Platform anti-collision switch
